How to Replace Shift Solenoid Toyota Camry

To replace the shift solenoid on a toyota camry, follow these steps: (1) locate the solenoid, usually found on the transmission. (2) disconnect any electrical connectors and remove the mounting bolts.

(3) replace the solenoid and reattach the electrical connectors and mounting bolts.

How to Replace Shift Solenoid Toyota Camry

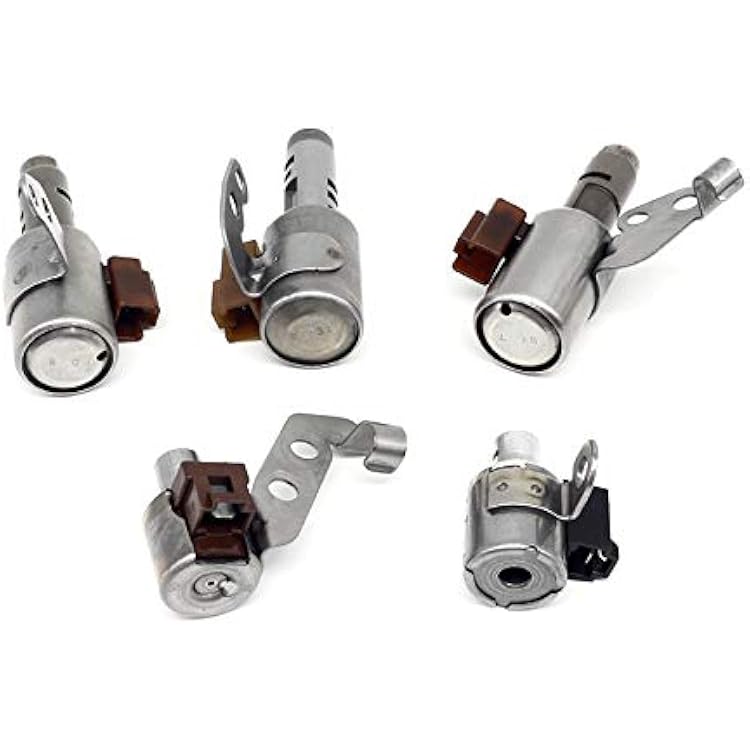

Credit: www.amazon.com

Table of Contents

Symptoms Of A Failing Shift Solenoid

Having a faulty shift solenoid can cause multiple issues with the transmission of your toyota camry. It’s crucial to be aware of the common signs that indicate a shift solenoid problem. If you’re experiencing any of the following symptoms, it’s likely that your shift solenoid needs to be replaced:

Gear slipping: One of the most noticeable signs of a failing shift solenoid is gear slipping. You may feel a sudden loss of power or the sensation that your vehicle is changing gears unexpectedly while driving.
Erratic shifting: Another symptom of a problematic shift solenoid is erratic shifting. You may experience rough or jerky gear transitions, especially when accelerating or decelerating. This can make your driving experience uncomfortable and potentially dangerous.

Transmission overheating: A failing shift solenoid can also lead to transmission overheating. If you notice the temperature gauge on your dashboard indicating high temperatures or a burning smell while driving, it’s likely that your shift solenoid is causing issues with the transmission fluid flow, resulting in overheating.
Delayed gear engagement: When a shift solenoid is failing, you might experience a delay in gear engagement. It may take longer for your vehicle to shift into the desired gear, particularly when starting from a complete stop. This can lead to decreased performance and slower acceleration.
Illuminated check engine light: The onboard diagnostic system in your toyota camry will often detect a shift solenoid problem and trigger the check engine light to illuminate. If you notice this warning light turned on, it’s a clear indication that your shift solenoid requires attention.

Transmission stuck in gear: In some cases, a faulty shift solenoid can cause the transmission to become stuck in a particular gear. This usually happens when the solenoid gets stuck in an “on” or “off” position, preventing the transmission from shifting gears smoothly.
Decreased fuel efficiency: A failing shift solenoid can affect the fuel efficiency of your toyota camry. Since the transmission may not shift properly, the engine will need to work harder to compensate, resulting in decreased fuel economy.
Harsh or delayed gear shifts: Lastly, if you notice harsh or delayed gear shifts, it could indicate a problem with the shift solenoid. This includes transmission hesitation, clunking sounds during shifting, or difficulty shifting gears smoothly.

Remember, if you experience any of these symptoms, it’s essential to have your toyota camry inspected and the shift solenoid replaced if necessary. Neglecting a failing shift solenoid can cause further damage to your transmission and lead to more costly repairs down the line.

Diagnostic Procedures

Diagnostic Procedures:

When it comes to replacing a shift solenoid in your toyota camry, it is crucial to diagnose the issue correctly. This will help you pinpoint which shift solenoid is faulty and ensure that you are addressing the right problem. To help you with this diagnostic process, here are the steps to follow and the tools you can use:

Discuss The Steps To Identify Which Shift Solenoid Is Faulty:

Begin by consulting your toyota camry’s service manual. This document provides specific instructions and diagrams that will guide you through the diagnostic process.

Locate the transmission control module (tcm) in your vehicle. The tcm is responsible for controlling the shift solenoids.
Use a code reader or scanner to retrieve any diagnostic trouble codes (dtcs) stored in the tcm. These codes can provide valuable information about the shift solenoid that is malfunctioning.
Write down the dtcs displayed on the code reader or scanner. These codes typically start with the letter “p” followed by four digits. For example, p0755 indicates a fault with shift solenoid b.

Research the meaning of the retrieved dtcs. Various online resources and forums can help you understand what each code signifies and which shift solenoid it relates to.
Considering the dtcs you retrieved, locate the shift solenoid(s) in your toyota camry’s transmission. They are usually accessible from the outside of the transmission housing.
Inspect the electrical connector(s) attached to the shift solenoid(s). Look for any signs of damage, such as loose connections or corrosion. These issues can cause solenoid malfunction.

If the visual inspection does not reveal any obvious problems, consider conducting additional tests, such as using a multimeter to check for proper voltage and resistance at the solenoid connector.
Based on your findings from the diagnostic procedures, you can determine which shift solenoid is faulty and proceed with the replacement process.

Explain The Use Of Diagnostic Tools Like A Code Reader Or Scanner:

Diagnostic tools like code readers or scanners are essential for troubleshooting automotive issues, including problems with shift solenoids. These devices communicate with the vehicle’s onboard computer systems and retrieve diagnostic trouble codes (dtcs) stored within them. Here’s why they are useful:

Code readers or scanners can quickly retrieve dtcs, providing valuable information about the underlying issue. This saves time compared to manual inspection and guessing the problem.
By accessing dtcs, you can pinpoint the specific shift solenoid that is malfunctioning, leading to accurate diagnosis and targeted repairs.
These diagnostic tools often offer additional features like live data streaming, allowing you to monitor various parameters in real-time while the vehicle is running. This can provide further insights into the health of the shift solenoids.

Code readers or scanners are user-friendly and designed for ease of use, making them accessible to both automotive professionals and diy enthusiasts.
Remember that each vehicle may require a specific type of code reader or scanner, so it is essential to consult the manufacturer’s instructions or seek professional advice.

Include A Mention Of The Importance Of Consulting The Vehicle’S Service Manual For Specific Instructions:

Consulting the vehicle’s service manual is crucial when it comes to diagnosing and repairing automotive issues, including shift solenoid problems in a toyota camry. Here’s why it is essential to reference this valuable resource:

The service manual provides accurate and detailed instructions tailored specifically to your vehicle’s make, model, and year. It ensures that you have the correct information required for a successful diagnosis and repair.
The manual contains diagrams, illustrations, and step-by-step procedures, making it easier for you to identify and locate critical components like the transmission control module (tcm) and shift solenoids.
It offers vital specifications, such as voltage and resistance values for testing components, helping you achieve precise diagnostic results and avoid potential mistakes.

Following the service manual ensures that you adhere to the recommended safety precautions and procedures. This helps protect both yourself and your vehicle from potential harm during the diagnostic and repair process.
If you are unsure about any aspect of the diagnostic process or require additional information, the service manual is a reliable reference that you can trust for accurate guidance.

By following these diagnostic procedures, utilizing diagnostic tools, and consulting the vehicle’s service manual, you can effectively identify the faulty shift solenoid in your toyota camry and proceed with its replacement.

Locating The Shift Solenoid

The shift solenoid plays a crucial role in the transmission system of your toyota camry, facilitating smooth gear shifting. To effectively replace the shift solenoid, it’s important to familiarize yourself with its general location and the specific areas in the transmission where it can be found.

Let’s delve into these details below:

Describe The General Location Of The Shift Solenoid In A Toyota Camry

The shift solenoid is situated within the transmission system of your toyota camry.

It is typically located near the valve body, which acts as the control center for hydraulic pressure regulation and gear shifting.
To access the shift solenoid, you will need to locate the transmission pan, as it is typically housed within this component.

Provide A Brief Overview Of The Transmission System And Its Components

The transmission system of your toyota camry consists of several components working in harmony to convert engine power into the rotational force necessary to drive the wheels. Here’s a quick overview:

Transmission fluid: This essential fluid lubricates the transmission, cooling and cleaning its components. It also facilitates smooth gear shifting.
Torque converter: Responsible for transmitting engine power to the transmission and enabling the vehicle to come to a stop without stalling.
Valve body: Functioning as the transmission’s control center, the valve body regulates hydraulic pressure, directing it to different components for optimal gear shifting.

Gears: The transmission contains a variety of gears to provide different gear ratios, allowing the wheels to turn at various speeds.
Shift solenoid: Vital for proper gear shifting, the shift solenoid controls the flow of transmission fluid, activating the respective gears as needed.
Transmission pan: This housing component encloses a portion of the transmission and is where the shift solenoid is typically located.

Mention The Specific Areas Or Parts Of The Transmission Where The Shift Solenoid Can Be Found

Valve body: The shift solenoid is commonly found within the valve body due to its close association with hydraulic pressure regulation and gear shifting.
Transmission pan: In many toyota camry models, the shift solenoid can be found inside the transmission pan. This requires removing the pan to access and replace the solenoid if necessary.
Electrical connector: Connects the shift solenoid to the vehicle’s electrical system, enabling control signals to be sent for proper operation.

By understanding the general location and specific areas or parts of the transmission where the shift solenoid is located, you will be better prepared to tackle the task of replacing it in your toyota camry. Always refer to your vehicle’s service manual for detailed instructions and take the necessary precautions to ensure a successful replacement.

Preparation

Preparation:

Before replacing the shift solenoid in your toyota camry, it is crucial to follow specific preparation steps to ensure a safe and efficient process. Taking the time to prepare properly will help you avoid any unnecessary complications. Here are the necessary steps to take before replacing the shift solenoid:

Safety precautions:

Ensure the vehicle is parked on a level surface to prevent any accidental movements.
Engage the parking brake for added stability.
Allow the engine to cool down completely before starting the replacement process to prevent any burns or injuries.

Gather the required tools and materials:
Check the repair manual for the specific tools needed for the replacement. Commonly needed tools include a socket wrench set, screwdrivers, and pliers.
Have replacement shift solenoids readily available before beginning the process, ensuring they are the correct ones for your toyota camry model.

Disconnect the battery:
Locate the battery in the engine compartment.
Use a wrench to disconnect the negative terminal from the battery.

This step is essential to prevent any electric shocks and ensure your safety throughout the replacement.
Remove the necessary components:
Open the hood and locate the transmission system in your toyota camry.

Identify the components that need to be removed to access the shift solenoid, such as the transmission pan or valve body cover.
Refer to the repair manual for detailed instructions on properly removing these components.
Prepare the work area:

Lay out a clean and soft surface, such as a blanket or cardboard, to prevent any damage to the vehicle or the parts being worked on.
Organize your tools and materials in a convenient and accessible manner to streamline the replacement process.

By following these preparation steps, you will be well-prepared to replace the shift solenoid in your toyota camry. Taking the time to ensure safety and gather the necessary tools will make the entire process smoother and more efficient.

Removing The Faulty Shift Solenoid

Discuss The Steps To Remove The Faulty Shift Solenoid From The Transmission

If you’re experiencing shifting issues with your toyota camry, it’s possible that the shift solenoid is the culprit. The shift solenoid is responsible for controlling the flow of transmission fluid, allowing the proper gear selection. In this section, we will walk you through the steps to remove the faulty shift solenoid from your camry’s transmission.

Ensuring you have the necessary tools and employing the correct technique is crucial for a successful replacement.

Here are the steps to remove the faulty shift solenoid from the transmission:

Begin by gathering the necessary tools: To properly remove the shift solenoid, you will need the following tools:
Socket set
Wrenches

New shift solenoid
Prepare your workspace: Before starting any work, make sure you have a clean and well-lit workspace. This will help you to easily locate and access the shift solenoid. Safety should always be a priority, so ensure the vehicle is turned off and the transmission is in park or neutral with the parking brake engaged.
Locate the shift solenoid: The shift solenoid is typically located on the side of the transmission. Refer to your vehicle’s service manual or consult an expert for the exact location. Once identified, use caution to prevent damaging any surrounding components.

Disconnect the electrical connector: The shift solenoid is connected to the wiring harness of the vehicle. Carefully disconnect the electrical connector by pressing the release tab and gently pulling it apart. Be cautious not to damage the connector or the wiring.
Remove the mounting bolts: The shift solenoid is secured to the transmission by one or more mounting bolts. Use the appropriate socket or wrench to remove these bolts. Keep in mind that some solenoids may have additional brackets or clips, so remove those as well, if necessary.
Detach the shift solenoid: With the mounting bolts removed, gently pull the shift solenoid away from the transmission. Take care not to force it or cause any unnecessary damage. If it seems stuck, double-check for any remaining bolts or brackets that may still be attached.

Inspect and replace the shift solenoid: Once the shift solenoid is removed, carefully inspect it for any signs of damage or wear. If the solenoid is faulty, it is recommended to replace it with a new one. This ensures optimal functioning and prevents any further issues.

Remember, when working with the transmission and its components, it is essential to exercise caution and practice proper technique. Following these steps will help you remove the faulty shift solenoid from your toyota camry’s transmission effectively.

Installing The New Shift Solenoid

When it comes to replacing a shift solenoid in your toyota camry’s transmission system, the installation process requires precision and care. The following steps will guide you through the process of installing a new shift solenoid effectively:

Prepare the area:
Start by ensuring you have a clean and well-lit workspace.
Put on safety goggles and gloves to protect yourself during the installation process.

Keep all the necessary tools and replacement parts within easy reach.
Locate the transmission:
Lift and secure your vehicle safely using jack stands or blocks.

Locate the transmission under your toyota camry.
Identify the old shift solenoid that needs to be replaced. Refer to the owner’s manual or online resources for specific location details.
Remove the old shift solenoid:

Carefully disconnect all electrical connectors attached to the solenoid.
Remove any mounting bolts or brackets securing the solenoid in place.
Gently pull out the old solenoid from its housing, ensuring not to damage any surrounding components.

Install the new shift solenoid:
Take the new solenoid and inspect it for any damage or defects before installation.
Align the new solenoid with the housing, ensuring proper fit and alignment.

Insert the solenoid into its housing, applying gentle pressure until it is fully seated.
Secure the new shift solenoid:
Reattach any mounting bolts or brackets that were removed earlier, ensuring they are tightened securely (refer to manufacturer instructions for torque specifications).

Connect all electrical connectors to the solenoid, making sure they are firmly attached.
Test the installation:
Before fully reassembling everything, double-check that the new shift solenoid is securely installed and all connections are properly tightened.

Start the engine and put the transmission into different gears, checking for any abnormal shifting or warning lights. If any issues arise, recheck the installation or consult with a professional.
Reassemble and clean up:
Once you are satisfied with the shift solenoid’s installation and functionality, reassemble any parts or components that were removed during the process.

Remove any debris or tools from under the vehicle and ensure a clean workspace.

Remember, if you are unsure about any step or encounter difficulties during the installation, it’s always best to consult a professional or refer to the manufacturer’s service manual. Installing the new shift solenoid with precision and care will help ensure smooth transmission operation and prolong the lifespan of your toyota camry.

Testing And Verification

Testing And Verification:

The installation of a new shift solenoid in your toyota camry is a crucial step in ensuring the smooth operation of your vehicle’s transmission. However, it is equally important to thoroughly test and verify that the replacement has been done correctly.

By following the steps outlined below, you can ensure the proper functionality of the shift solenoid, clear any error codes, and test your vehicle’s performance:

Steps To Ensure Correct Installation:

Step 1: Reconnect battery: to begin the testing process, reconnect the battery that had been disconnected during the shift solenoid replacement procedure. This will power up the vehicle’s electrical systems and allow for proper testing.
Step 2: Clear error codes: plug in an obd-ii scanner and use it to clear any error codes that may have been triggered during the shift solenoid replacement. This will ensure a clean slate for testing the new solenoid’s functionality.

Step 3: Functional testing: engage the vehicle in various gears, such as park, reverse, neutral, and drive, to check if the new shift solenoid is working as expected. Pay attention to any unusual noises or delays in shifting as these could be indications of a faulty installation.
Step 4: Performance testing: take your vehicle for a test drive to assess the overall performance of the transmission. Test the acceleration, smoothness of gear shifts, and responsiveness during shifting. If you notice any issues, such as slipping gears or rough shifting, it may indicate a problem with the new shift solenoid.
Step 5: Recheck error codes: after testing the vehicle’s performance, reconnect the obd-ii scanner and check for any new error codes. If any codes are detected, they should be addressed promptly to ensure the continued proper functioning of the shift solenoid.

Importance Of Verification:

Verifying the correct installation and functionality of the new shift solenoid is vital for several reasons:

Ensuring proper transmission operation: The shift solenoid plays a crucial role in the transmission system, controlling the shifting of gears. Verifying that the solenoid is installed correctly and functioning properly is necessary to avoid transmission-related problems such as gear slippage, hesitation, or incorrect gear engagement.
Avoiding potential damage: A faulty shift solenoid can cause excessive wear on transmission components, leading to costly repairs or even the need for a complete transmission replacement. By verifying the new solenoid’s functionality, you can prevent potential damage and extend the lifespan of your vehicle’s transmission.

Safety and reliability: A properly functioning shift solenoid ensures smooth and precise gear changes, enhancing the safety and reliability of your vehicle on the road. It allows for proper control over your vehicle’s acceleration, deceleration, and overall driving experience.

Testing and verifying the new shift solenoid in your toyota camry is essential for correct installation, optimal transmission performance, and long-term reliability. By following the steps outlined above, you can enjoy a smoother driving experience and mitigate any potential transmission issues that may arise.

Frequently Asked Questions On How To Replace Shift Solenoid Toyota Camry

How Do I Know If My Shift Solenoid Is Bad?

If your toyota camry is experiencing delayed or erratic shifting, slipping gears, or failing to shift at all, it may be a sign of a faulty shift solenoid. Additionally, error codes such as p0750 or p0753 may appear on your vehicle’s obd-ii scanner, indicating a problem with the shift solenoid.

Can I Replace The Shift Solenoid Myself?

Yes, you can replace the shift solenoid in your toyota camry yourself if you have basic mechanical skills and tools. It involves locating the solenoid, disconnecting the wiring harness, removing the old solenoid, and installing the new one. However, it is recommended to consult a professional mechanic for guidance if you are unsure.

How Much Does It Cost To Replace A Shift Solenoid?

The cost of replacing a shift solenoid in a toyota camry can vary depending on several factors, including the quality of the solenoid, labor costs, and location. On average, the cost can range from $150 to $400. It is recommended to get quotes from multiple mechanics or shops to ensure you get a fair price.

Conclusion

To summarize, replacing the shift solenoid in a toyota camry can be a complex task but with the right knowledge and tools, it is manageable even for those with limited mechanical experience. By following the step-by-step instructions outlined in this blog post, you can effectively diagnose and replace a faulty shift solenoid in your camry, saving you time and money.

Remember to take safety precautions, such as disconnecting the battery and working in a well-ventilated area. Additionally, it’s always beneficial to consult your vehicle’s manual or seek help from a professional if you encounter any difficulties during the process. By properly maintaining your vehicle and addressing any issues promptly, you can ensure a smoother and more reliable driving experience in your toyota camry.
